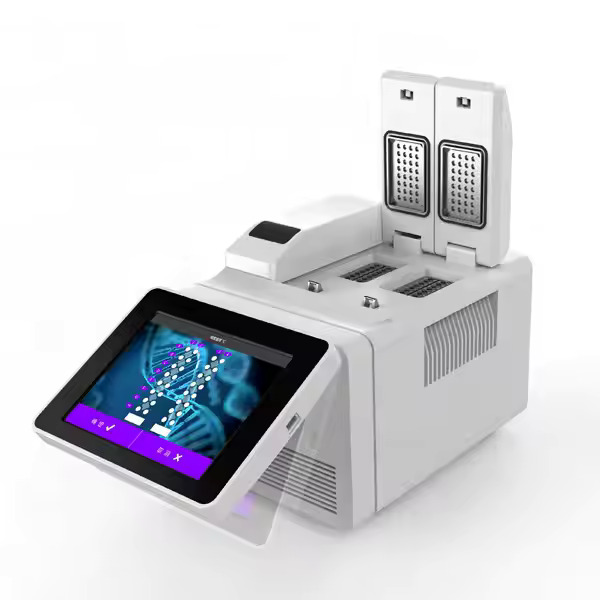

T20
RunMei
1000
Model | T20(Dual-Block） |
Sample Block | 2 blocks 48 wells 0.2 ml PCR tube,strip with flat ＆dome cap |
Heating&Cooling Technology | New generation Peltier technology allow 1,000,000 cycles |
Display | 10”Full Color Touch Screen with adjustable angle, and real-time graphical display |
Language | English |
USB flash drive Function | Unlimited storage of protocols with USB flash drive;Back-up user’s data |
Communication Ports | USB 2.0 & LAN |
TEMPERATURE | |
Block Temp.Range | 0℃－105℃ |
Max.Heating Rate | 7.5℃/s |
Max.Cooling Rate | 6℃/s |
Temp.Uniformity | ≤±0.2℃(at90℃) |
Temp.Accuracy | ≤±0.1℃(at90℃) |
Display Resolution | 0.1℃ |
Ramping Rate Adjustable | 0.1－5℃/s |
GRADIENT | |
Gradient Accuracy | ≤±0.1℃ |
Uniformity | Wells of Same Line Uniformity≤±0.2℃ |
Gradient Range | 30℃－105℃ |
Temp.Differential Range | 1℃－25℃ |
Display of Gradient Temp. | Each individual block has 8 gradient Temp. |
SOFTWARE | |
Max.Number Of Programs | Max.15,000programs onboard,unlimited storage of protocols with USB flash drive |
Max.Step | 30 Steps, multiple nesting cycles available |
Max.Cycle | 100 Typical Cycles (multiple nesting allows 10,000 cycles) |
Time Increment/decrement | 1－600 sec, available for Long PCR |
Temp.Increment/decrement | 0.1－10℃, available for Touchdown PCR |
Auto Pause ＆Auto Restart | Yes |
Hold at4℃ | A below ambient Temp.incubation allow PCR products storage overnight |
Program Wizard | Pre-program template make the editing very easy through modify several parameters. |
Running RePort | Provide full review of perviously run protocols |
HEAT LID | |
Lid Temp.Range | 30℃－112℃ |
Open Method | Innovative TOP-OPEN technology, with even pressure of heat lid |
Auto Shut-off | Lid will shut off automatically when the block Temp.falls below set Temp |
OTHER FEATURES | |
Power | Global switch power supply: 100V-240V, 50-60Hz |
Consumption | 750W |
Dimensions(L×W×H) | 375×270×277mm |
| Net Weight | 13KG |
